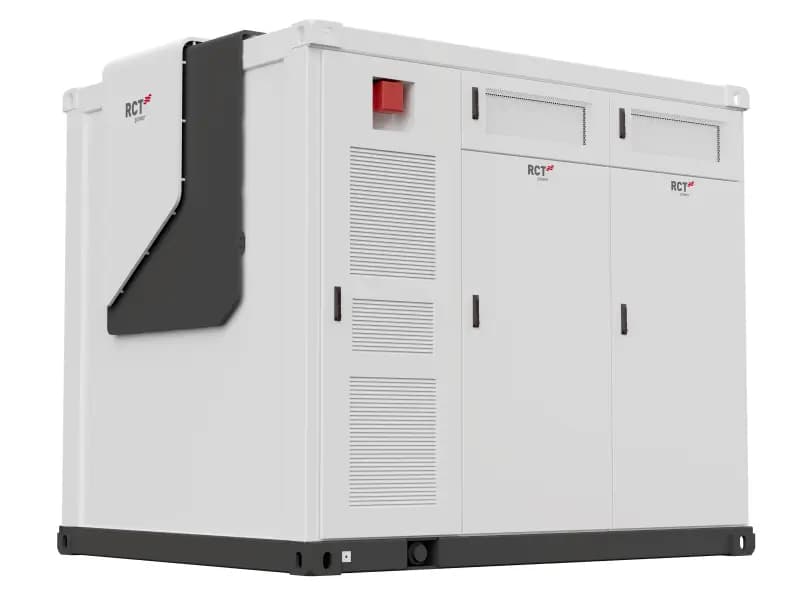

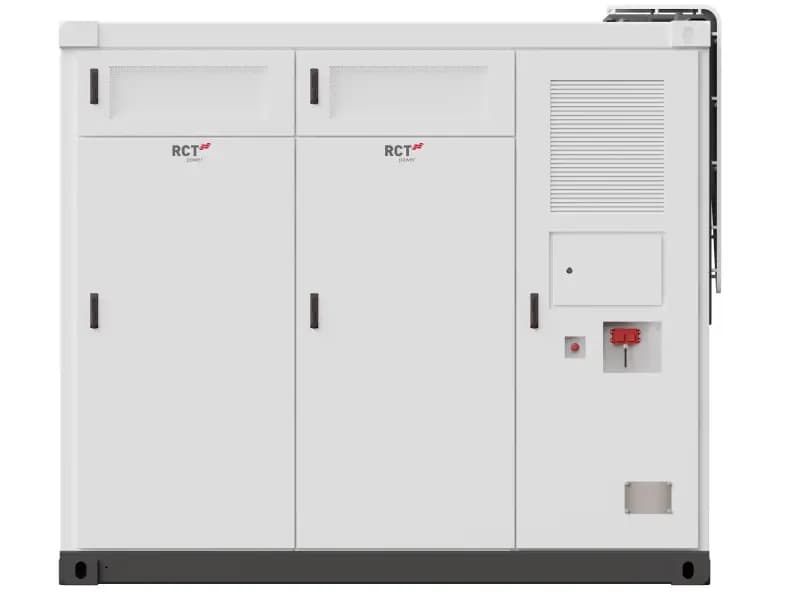

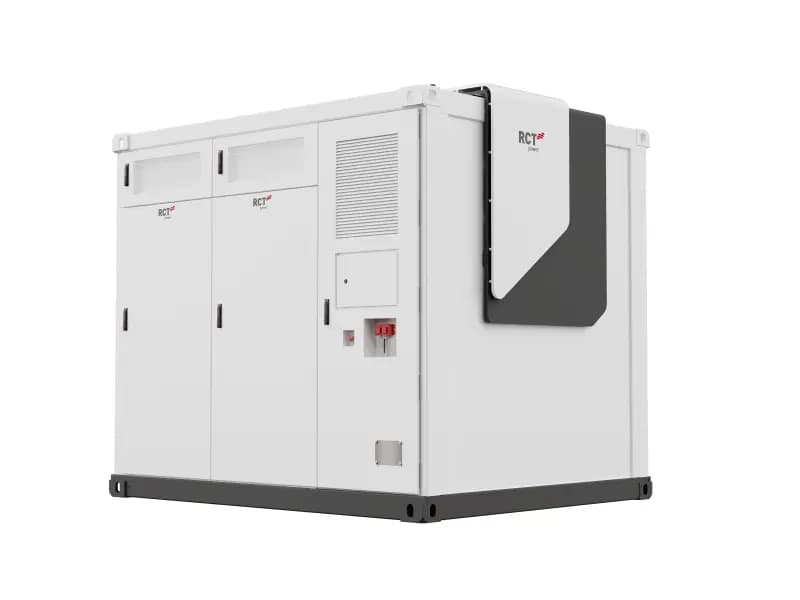

RCT POWER CESS 1000 Series

Commercial & Industrial Energy Storage System

The RCT POWER CESS 1000 Series is a high-performance commercial and industrial energy storage system designed for large-scale energy management applications. Combining modular battery architecture, powerful PCS integration, and intelligent energy management, it provides a flexible, reliable, and scalable solution for industrial facilities, renewable energy projects, and microgrid applications.

With a 932 kWh LiFePO₄ battery capacity, liquid cooling technology, and advanced safety protection systems, the CESS 1000 Series delivers outstanding performance, long service life, and enhanced operational safety. Its modular design supports flexible system configuration and parallel connection, enabling customized solutions to meet diverse project requirements.

Категорії

Key Features

Modular & Scalable Design
Modular battery racks and PCS enable flexible system configuration and easy capacity expansion.

High Energy Capacity
Equipped with a 932 kWh LiFePO₄ battery system to support large-scale commercial and industrial energy applications.

Flexible Power Configuration
Supports parallel connection and block-building architecture for different project requirements.

Advanced Thermal Management
Liquid cooling technology ensures stable battery operation, improves efficiency, and extends system lifespan.

Integrated Energy Management System
Built-in EMS enables intelligent energy monitoring, control, and optimization.

Comprehensive Safety Protection
Features multi-level electrical protection and a six-dimensional fire protection system, including gas detection, smoke detection, temperature monitoring, fire suppression, emergency stop, and alarm systems.

Industrial-Grade Protection
Designed with IP54 / NEMA 3R protection for reliable outdoor operation.

Typical Applications

Utility-scale renewable energy integration

Industrial energy storage systems

Manufacturing facilities

Commercial buildings

Solar + Storage projects

Microgrid applications

Peak shaving and demand management

Backup power solutions

Supported certifications include UN 38.3, IEC 62619, IEC 63056, EN 62477, EN 62040, IEC 60730, EN 62933, EN 61000, NFPA 69, UL 1973, UL 60730, UL 9540A, and UL 9540.

BATTERY
Nominal capacity	932 kWh
Batterytechnology	LiFePO,
Charge/ discharge rate	0.5 P
Battery pack structure	l P52S
Cooling	Liquid Cooling
BMS	Integrated
Rated DC voltage	832 Vdc
DC voltage range	775~928 Vdc
INVERTER	IEC	UL
DC Operating voltage range	680 - l 000 Vdc	700 - l 000 Vdc
Rated AC power	4 x l 25 kW = 500 kW	4 x 125 kW= 500 kW
Rated AC current	4 x l 80 A = 720 A	4 x l 50 A = 600 A
AC rated voltage	400 Vac	480 Vac
AC line frequency	50 / 60 Hz	60 Hz
Peak ef什ciency	98.60%	98.60%
ENERGY MANAGEMENT SYSTEM
EMS	Integrated
COMMUNICATION
Communication protocol	Modbus TCP/RTU, CAN
Touch panel	15,6" industrial standard
Cloud/ APP	Yes
OPERATION
Relative operating hum吐ty	0 ~95% RH, no-condensation
Operating temperature range	-20°C... +45C
Operating altitude	三2000m
DIMENSIONS (TOTAL)
Dimensions(W x H x D)	2991 x 2591 x 2438 mm
Weight	Approximately11600 kg
SAFTEY / STANDARDS
Protection	IP54 / NEMA 3R
Cor「osion-proofgrade	C4/ C5
Safety	a. Flammable/explosive Gas detection	e. Aerosol Fire Extinguish
	b. Flammable/explosive Gas exhaust	f.Siren and Strobe Alarm
	c. Smoke Detection	g.Emergency Stop Button
	d. Temperature Detection	h. Dry Pipe and Sp「inkle
Cert币cation	UN 38.3, IEC 52519, IEC 53056, EN 62477,EN 62040, IEC 60730, EN 52933, EN 61000
	NFPA 69, UL 1973, UL 50730, UL 9540A, UL 9540
